Ventis Medium Sized Single Door Wood Burning Fireplace Insert with 1800 Sq Ft Max Heating Space
Ventis HEI170 Wood Burning Fireplace Insert featuring a single cast iron door and a great option for updating old and inefficient fireplace. It is a medium size wood insert suitable for smaller spaces and capable of heating up to 1,800 square feet while producing up to 65,000 BTUs. The firebox can hold up to an 18-Inch log. The clean burning non-catalytic insert is EPA approved with a low 1.26 g/h emissions rating.
Features:
-
Medium size wood insert suitable for smaller spaces
-
EPA certified at only 1.26 g/h
-
Solidity and manufacturing quality
-
Non-catalytic combustion technology
-
Installation authorized on the Island of Montreal
-
Cast iron door
-
144 CFM blower
- Stainless steel heat shield added to the firestop
Required option:

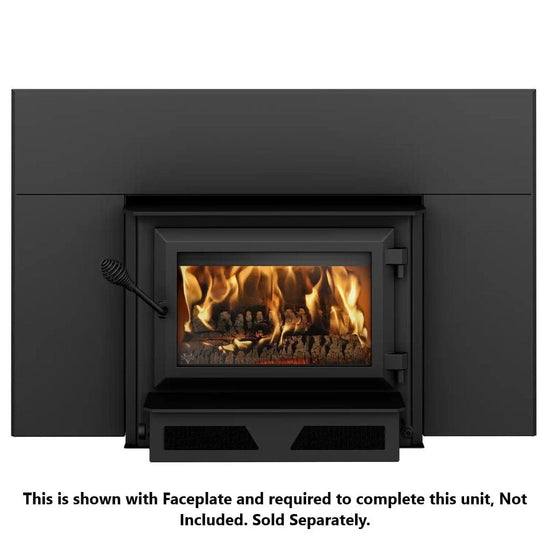

- Choose one faceplate to complete this unit. Not Included, Sold Separately.
- Regular faceplate (VBA1555) or Large faceplate (VBA1556).
Downloads
Specifications:
Appliance Performance
Fuel type |
Dry cordwood (16" recommended) |
Recommended heating area |
500 - 1,800 ft² |
Overall firebox volume |
1.9 ft³ |
EPA loading volume |
1.44 ft³ |
Maximum burn time |
6 hours |
Maximum heat output-dry cordwood |
65,000 BTU/h |
Minimum overall heat output rate |
15,650 BTU/h (4.6 kW) |
Maximum overall heat output rate |
23,300 BTU/h (6.83 kW) |
Average efficiency-dry cordwood (HHV) |
70 % |
Average efficiency-dry cordwood (LHV) |
75 % |
Optimum efficiency |
78 % |
Optimum heat transfer efficiency |
74 % |
Average particulate emission rate |
1.26 g/h |
Average CO |
58 g/h |
- Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
- Optimum overall efficiency at a specific burn rate (LHV).
- This appliance is officially tested and certified by an independent agency.
- The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
- As measured per CSA B415.1-10 stack loss method.
- Higher Heating Value of the fuel.
- Lower Heating Value of the fuel.
- The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
- Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
- Carbon monoxyde.
General Features
Premium quality blower included (CFM) |
144 CFM included |
Certified according to applicable standards |
CAN/USA accredited laboratory |
Flue outlet diameter |
6" |
Recommended chimney diameter |
6" |
Type of chimney |
CAN/ULC S629, UL 103 HT (2100 °F) |
Minimum chimney height |
12" |
Overall dimension (Width) |
27 1/8" |
Overall dimension (Height) |
21" |
Overall dimension (Depth) |
22 3/8" |
Door type |
Single, glass with cast iron frame |
Door opening size (Width) |
17 1/4" |
Door opening size (Height) |
8 3/4" |
Glass type |
Ceramic glass |
Glass surface - W x H |
15 5/8" x 9 1/4" |
Firebox size (Width) |
19 5/8" |
Firebox size (Height) |
11 7/8" |
Firebox size (Depth) |
13 1/2" |
Maximum log length |
18" |
Log positioning |
Loading over width |
High-efficiency certified appliance |
Yes, EPA 2020 certified |
Canadian Standard (safety) |
ULC S628 |
USA Standard (safety) |
UL 1482, UL 737 |
Shipping weight |
348 lb (158 kg) |
Minimum fireplace opening (Height) |
21 1/2" |
Minimum fireplace opening (Depth) |
12 3/4" |
Steel thickness-top |
5/16" |
Firebox lined with refractory bricks |
Yes |
Combustion technology |
Non-catalytic |
Steel thickness-body |
3/16" |
Baffle type |
High quality vermiculite |
Stainless-steel secondary-air system |
Yes |
Minimum fireplace opening (Width) |
27 1/2" |
USA Standard (emissions) |
EPA |
Canadian Standard (emissions) |
CSA B415.1-10 |
Warranty:
VENTIS LIMITED LIFETIME WARRANTY
The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. This warranty covers brand new products only, which have not been altered, modified nor repaired since shipment from factory. Proof of purchase (dated bill of sale), model name and serial number must be supplied when making any warranty claim to your VENTIS dealer.
This warranty applies to normal residential use only. This warranty applies to normal residential use only. This warranty is void if the unit is used to burn material other than cordwood (for which the unit is not certified by EPA) and void if not operated according to the owner's manual. Damages caused by misuse, abuse, improper installation, lack of maintenance, over firing, negligence or accident during transportation, power failures, downdrafts, venting problems or under-estimated heating area are not covered by this warranty. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
This warranty does not cover any scratch, corrosion, distortion, or discoloration. Any defect or damage caused by the use of unauthorized or other than original parts voids this warranty. An authorized qualified technician must perform the installation in accordance with the instructions supplied with this product and all local and national building codes. Any service call related to an improper installation is not covered by this warranty.
Description - Appliance Warranty |
Parts |
Combustion chamber (welds only), castings and convector air-mate |
Lifetime |
Plating (defective manufacture) and ceramic glass (thermal breakage only) |
Lifetime |
Stainless steel firebox components, vermiculite, C-Cast or equivalent baffle, and secondary air tubes, glass retainers and handle assembly |
5 years |
Surrounds and heat shields, ash drawer, steel legs, pedestal and trim (aluminum extrusions) |
5 years |
Carbon steel firebox components |
3 years |
Blowers, heat sensors, switches, rheostat, wiring and electronics |
2 years |
Paint (peeling), gaskets, insulations, refractory bricks (fireplace only) and ceramic fibre blankets |
1 year |
Download the complete warranty for all the details.
Labour cost and repair work to the account of the manufacturer are based on a predetermined rate schedule and must not exceed the wholesale price of the replacement part. Shall your unit or a components be defective, contact immediately your VENTIS dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling:
- Your name and contact information
- The serial number and model name as indicated on the certification label
- The original invoice
- Nature of the defect
- Installation configuration
Before shipping your unit or defective component to our plant, you must obtain an Authorization Number from your VENTIS dealer. Any merchandise shipped to our plant without authorization will be refused automatically and returned to sender.
